CDU-2000

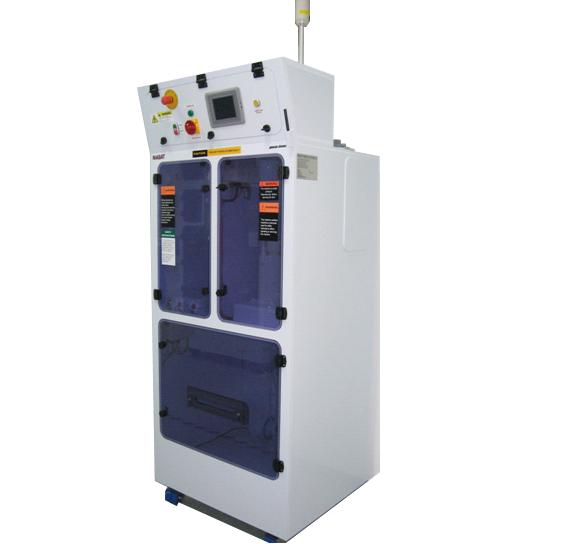

Bottles Chemical Delivery Unit


The MABAT CDU-2000 designed for delivering up to 3 different chemicals to the end user system upon a fill request signal.

The system can hold up to 3 different types of chemicals containments for delivery.



  • Handles most aqueous chemicals
  • Supply of up to 3 different chemicals from different containments as percustom requirements
  • Independent delivery of each one of the chemicals
  • Auto switch for continuous flow, In case of having more than one containment to the same chemical
  • Automatic delivery according to user fill request
  • Small footprint
  • Front maintenance access
  • Utilities located at high level for easy connection
  • Polypropylene cabinets with height adjusting feet mounted on a stainless steel chassis
  • High Level resolution touch screen for local operation
  • All chemical handling pathways, tubing, valves and pumps utilize HP440 / HP450 PFA & PTFE
  • Pneumatic actuation of valves, transfer and delivery chemical pumps
  • Pumped drain from the cabinet base which acts as leak containment

Options


Chemicals        The number of chemicals and the
                                containment type is determine by the
                        customer requirements

Cabinet MOC        FM compliant plastics, or else

Pumps                   Dosing/pneumatic according to process

Monitoring        Weight cells or proximity sensor for delivery
                        control and monitoring




Utilities Needed


N2                                 25 psi, 20 lpm

CDA                             80 psi, up to 50 lpm

Exhaust                       up to 250 m3/h

DI supply                     30 psi, up to 5 lpm

Drain                            ½” PFA max flow 15 lpm


Construction Materials


Std CDU                     White PP or other, on a coated
                                     stainless steel chassis

Tubing                        HP PFA

Valves                        HP PFA

Pumps                      PTFE/HP440PFA

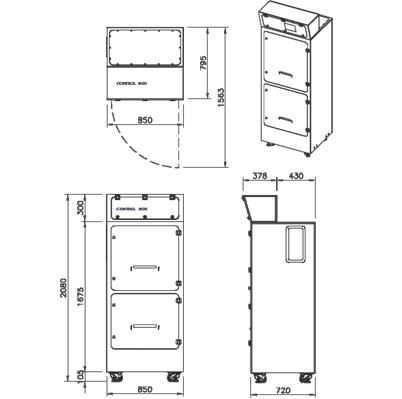

Dimensions


  Height  Width  Depth
Cabinet            2,080 mm 850 mm 720 mm




Electrical- top location


Supply 24VDC 10A

PLC ABB

Touch Screen Exter


System Delivery Volumes

As required by the application.



Reliability


Uptime> 99.9%
MTBF 2500 hours
MTBA 250 hours
MTTR 2 hours, subject to spares
                                  being available on site
