HCC-100-1
HCC-100-1
HCC-100-1 heating cooling chamber has been designed for burn-in testing. The unit can be operated and programmed from the control panel, located on the front side of electric cabinet.
The plate can reach temperatures in range of –90 to +150 oC.
Target temperature of the module is defined by the user and controlled by electrical heating element and liquid nitrogen, according to user set-point
 |
|
- The plate can reach temperatures in range of –90 to +150 oC
- The unit can be programmed for up to five different recipes. Each recipe contains five parameters: Ramp Time, Target Temperature, Dwell time, Check on-off and Power on-off

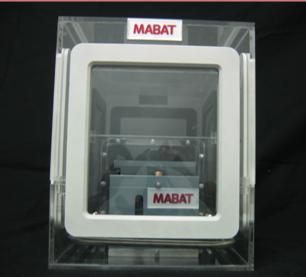

- The unit is equipped with plastic chamber to keep the plate under dry condition. This achieved by constant dry N2 flow to the chamber

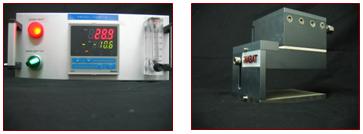

- The unit is controlled by local touch screen operation
- The plate is movable, and can be shift up and down
|
|
Options
Oxygen Analyzer |
(by customer) |
General dimensions
|
could be modify according to
customer requirements
|
Working area
|
could be modify according to
customer requirements
|
|
|

|
 |
|

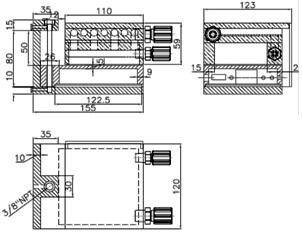

Dimensions
|
Height |
Width |
Depth |
Plate |
105-155 mm |
110 mm |
120 mm |
Chamber |
300 mm |
250 mm |
250 mm |
Control panel |
130 mm |
300 mm |
250 mm |
Electrical
Supply 220 VAC 16A, 50 Hz
|
Utilities Needed
Liquid N2 Pressure |
100 psi Max |
Gas N2 Flow |
50 lpm Max |
Gas N2 Pressure |
60 psi |
|
|
Construction Materials
Work Surface |
Aluminium |
Gas Chamber |
Perspex |
|
